Description
Direct Camera Control

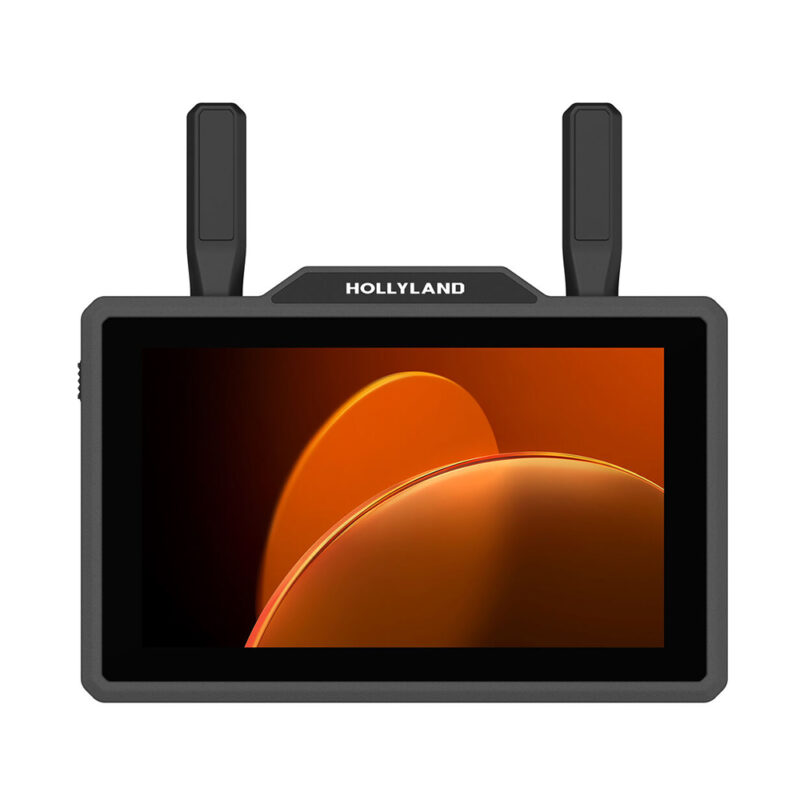

With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, and ISO, offering dynamic control over your camera’s settings.
Efficient Proxy Recording.
Proxy files can be recorded directly to an SD card or USB drive while monitoring in real-time. Automatically organized into folders, proxy files are ready to review or cut. The Proxy files now include timecode, perfectly synced with your camera for easier, more accurate editing.
Shoot Bright. See Brighter.
The 1500-nit screen stays bright and readable, even in the most challenging outdoor lighting.
Smart Channel Selection
At startup, the system automatically scans and locks onto the optimal frequency channel. Channels can also be manually scanned and switched via the receiver, with visual signal strength indicators for each frequency.
Precision Meets Ease Image Analysis.
Advanced image analysis tools—now more accurate, more user-friendly, and made for fast decision-making on set.
3D LUT
Pyro 5 comes with 5 built-in LUTs and supports custom LUT import.
HDMI & SDI Ports Connect to What You Need.
With both HDMI and SDI loopout, Pyro 5 fits seamlessly into a wide range of production setups.
Technical Specifications
Display Size
5.5″ / 14.0 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
No
Media/Memory Card Slot
Single Slot: SD (Unspecified Type) [Record/LUT/Firmware]
Wireless
2.4 GHz Radio/RF / 5.8 GHz Radio/RF
Video Format
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Show Less
Battery
1x L-Series Mount on Fixed Plate
Display
Panel Type
LCD
Display Size
5.5″ / 14.0 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1500 nits / cd/m2
Contrast Ratio
1000:1
HDR Support
No
Color Gamut
100% Rec. 709
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, False Color, Focus Assist, Histogram, Vectorscope, Waveform, Zebra

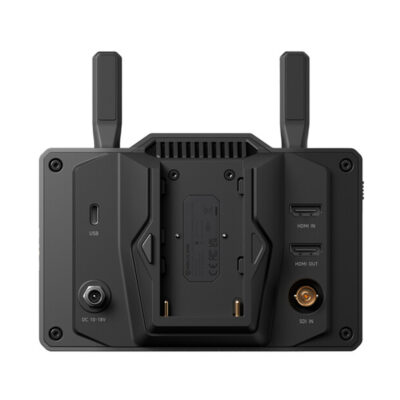

Inputs/Outputs
Antenna I/O
2x RP-SMA
Video I/O
1x HDMI 1.4b Input
1x BNC (3G-SDI) Input
1x HDMI 1.4b Loop Output
Embedded Audio
HDMI: 8-Channel
Audio I/O

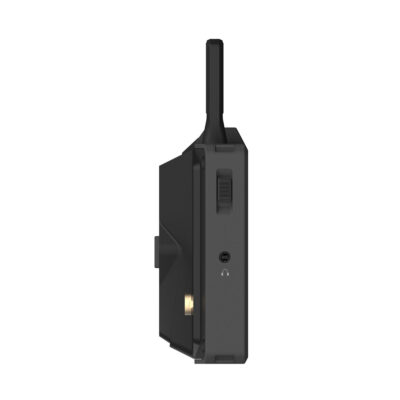

1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel (18 VDC) Input
Other I/O
1x USB-C 2.0
Media/Memory Card Slot
Single Slot: SD (Unspecified Type) [Record/LUT/Firmware]
Wireless
Wireless
2.4 GHz Radio/RF / 5.8 GHz Radio/RF
Wireless Range
1312.3′ / 400 m
Channel Bandwidth
40 MHz, 20 MHz
Frequency Range
5.15 to 5.25 GHz
2.412 to 2.484 GHz
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.6 to 5.725 GHz
5.725 to 5.85 GHz
Latency
60 ms
RF Power
< 23 dBm
RF Sensitivity
-85 dBm
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
Yes: Android & iOS
Format Support
Video Format
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format
8-Channel 8-Bit
Power
Input Power
10 to 18 VDC
6 to 16 VDC
Battery
1x L-Series Mount on Fixed Plate
Power Consumption
14 W
16.5 W
Mounting

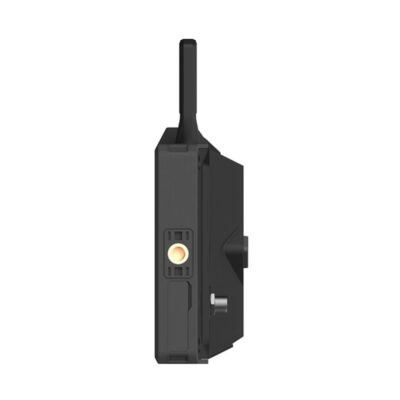

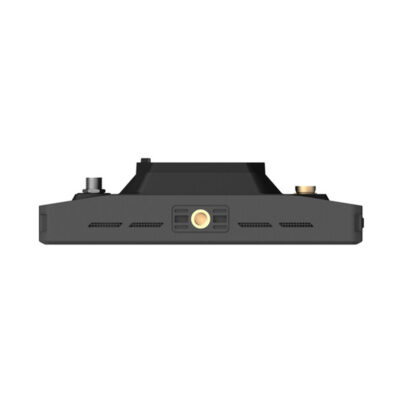

Tripod/Accessory Mounting
1/4″-20 Female
General
Environmental Resistance
No
Operating Conditions
14 to 113°F / -10 to 45°C
Storage Conditions
-40 to 113°F / -40 to 45°C
Dimensions
6 x 4 x 1.6″ / 151.6 x 102.3 x 40.5 mm
Weight
14.5 oz / 410.00 g
Power Consumption
⚡ Hollyland Pyro 5 (5.5″ Wireless Monitor) • Power Profile
- Operating Voltage: 7.4V DC (Rear NP-F Slot) / 6V to 16V DC (Locking DC Input)
- Power Draw (1500-Nit LCD + Wireless TX/RX Active): ~22W (Official Hollyland rating <22W with 1500-nit daylight touchscreen and dual-band wireless transceiver active)
- Power Options: 1x Rear Sony NP-F battery slot (7.4V) or locking DC input via D-Tap cable
⏱️ Pyro 5 Runtime (~22W Draw @ 85% Efficiency)
- 🔋 1x NP-F 570 (26Wh — Short Takes Only): ~1.0 hour (1h 00m)
- 🔋 1x NP-F 770 (47Wh): ~1.8 hours (1h 49m)
- 🔋 1x NP-F 980 (74Wh): ~2.9 hours (2h 51m)
- 🔋 V-Mount 98Wh (via D-Tap to Locking DC): ~3.8 hours (3h 47m)
- 🔋 V-Mount 150Wh (via D-Tap to Locking DC): ~5.8 hours (5h 48m)
📊 The 85% Efficiency Standard
- Usable Capacity: Runtimes apply a 0.85 multiplier (Usable Wh = Rated Wh × 0.85) to account for low-voltage cutoff protection and heat dissipation in the 1500-nit panel and wireless transceiver.
⚠️ Production Note: Because the Pyro 5 has a single NP-F slot and draws up to 22W at full 1500-nit brightness, high-capacity NP-F 770 / NP-F 980 batteries or a V-Mount D-Tap feed are strongly recommended.
🛠️ Rig Calculator: Powering the Pyro 5 from your camera battery? Use the FRENEL Power & Battery Runtime Calculator to calculate your full rig runtime.

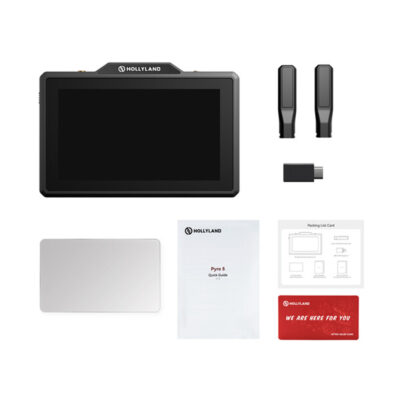

Included
Hollyland Pyro 5 – Wireless Transceiver Monitor is available to rent at FRENEL rental.
- 1x monitor
- 2x antennas
- 1x D-Tap σε DC locking cable
- 1x USB-C OTG adapter
- 1x hard case
