Description

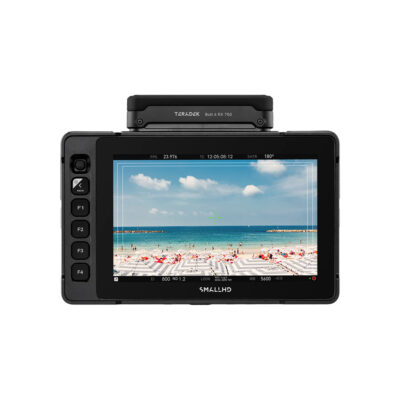

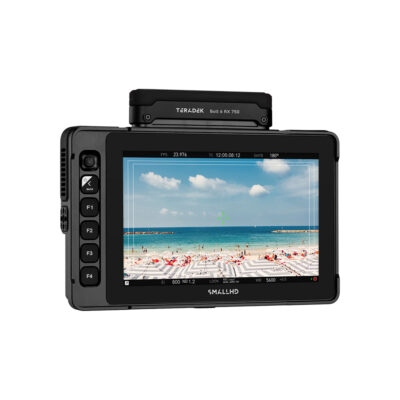

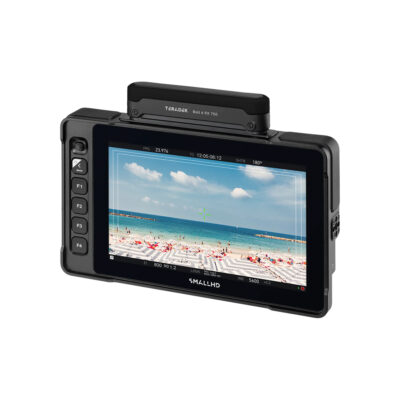

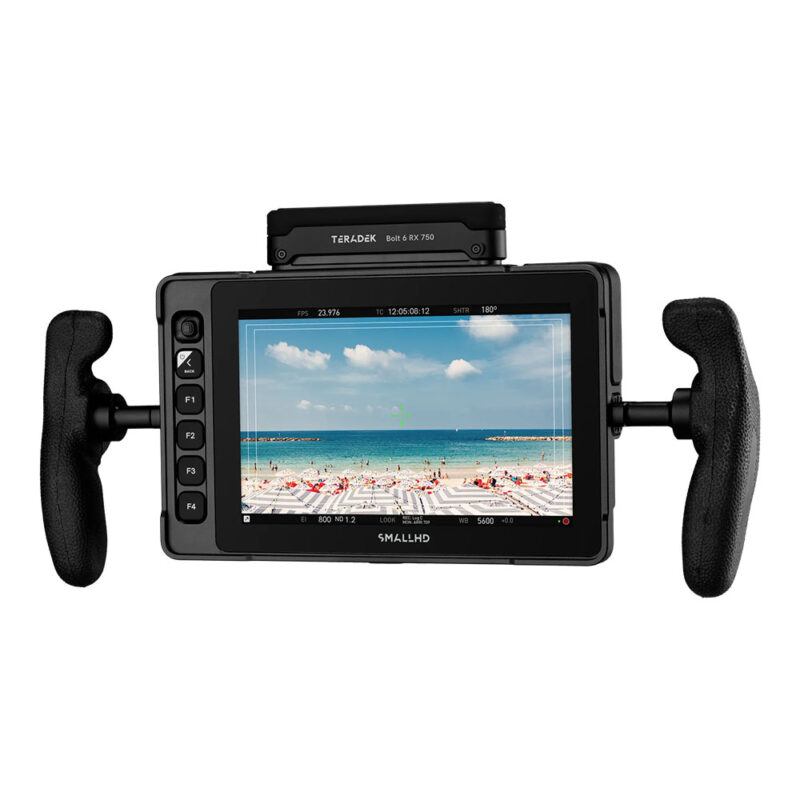

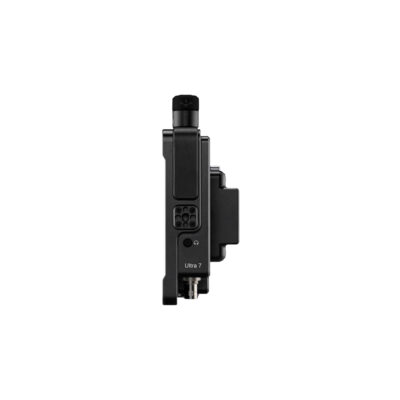

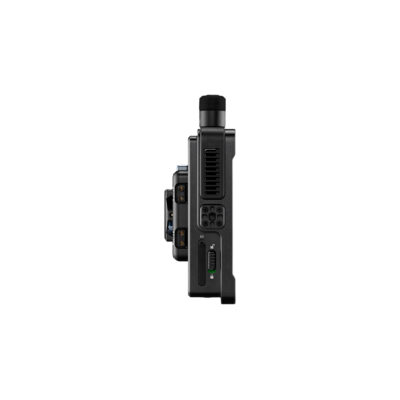

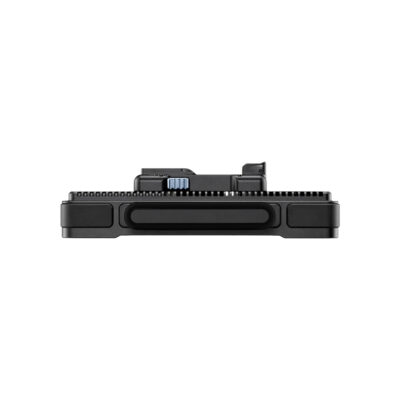

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 7 Bolt 6 RX 750 Monitor. The unit features an ULTRA 7 bright 7″ on-camera monitor, an integrated Bolt 6 receiver from Teradek, and a V-mount battery plate. The monitor features a bright 2300 cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 6G-SDI inputs/outputs that support up to 4K, camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in receiver module provides wireless image transmission up to 750′, as well as optional wireless camera control using a separately available transmitter module and connection kit. The module can receive via the 6 GHz wireless band, and up to six Teradek Bolt 6 series receivers, as well as 5 GHz receivers such as the Teradek Bolt 4K series, can work alongside one another. It features a powerful internal V-antenna for high-quality, low-latency transmissions, and its unibody design is water and dust resistant.
Features
- The Ultra 7 Bolt 6 RX 750 integrates a Bolt 6 750 receiver directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera up to 750′ away
- Daylight-viewable, 7″ touchscreen on-camera monitor with 2300 cd/m² brightness
- Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
- HDMI and 6G-SDI inputs and outputs
- The Bolt 6 750 RX is a real-time wireless video receiver that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send color-accurate, True HDR images in
- less than 0.001 seconds
- Tactile buttons around the monitor allow you to use the monitor in any condition
- The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
- Four 1/4″-20 mounting threads on the left, right, bottom, and back of the monitor
- Power using a 2-pin power input or included V-mount battery plate
- Optional RED camera control via the 5-pin USB port
- Optional ARRI/Sony VENICE camera control via the Ethernet port
- Durable aluminum chassis
Display Tools
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels
Technical Specifications
SmallHD ULTRA 7 RX 750 Specs
Key Specs
Display Size
7.0″ / 17.8 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
No
Media/Memory Card Slot
Single Slot: SD (Unspecified Type) [LUT Upload Only]
Wireless
Proprietary Wireless / Wi-Fi
Video Format
SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 60/59.94
576i: 50
Show Less
Battery

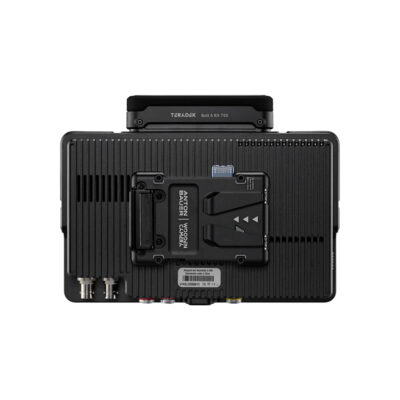

1x V-Mount on Included, Interchangeable Plate
Display
Panel Type
LCD
Display Size
7.0″ / 17.8 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
2300 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors (10-Bit)
HDR Support
No
Color Gamut
95% DCI-P3
98% Rec. 709
Image Controls
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
Inputs/Outputs

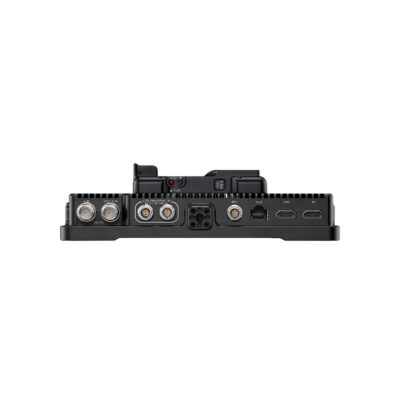

Video I/O
1x BNC (6G-SDI) Output
1x HDMI Output
1x BNC (6G-SDI) Input
1x HDMI Input
Embedded Audio
HDMI
SDI
Audio I/O
1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x LEMO 0B 2-Pin (34 VDC / 2.1 A) Input
Other I/O
1x LEMO 5-Pin (Camera Control) Output
1x RJ45 (Camera Control) Output
Media/Memory Card Slot
Single Slot: SD (Unspecified Type) [LUT Upload Only]
Encryption
No
Wireless
Wireless
Proprietary Wireless / Wi-Fi
Wireless Range
750′ / 228.6 m
Mobile App Compatible
No
Format Support
Video Format
SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 60/59.94
576i: 50
Audio Format
2-Channel
Power
Input Power
10 to 34 VDC at 2.1 A
Battery
1x V-Mount on Included, Interchangeable Plate
Mounting
Tripod/Accessory Mounting
Bottom/Left/Right
1x 1/4″-20 Female
General
Environmental Resistance
Dust/Water-Resistant (IP54)
Material of Construction
Aluminum
Weight
1.98 lb / 900.00 g
Power Consumption
⚡ SmallHD Ultra 7 Bolt 6 RX • Electrical & Power Profile
- Operating Voltage: 10V to 34V DC (2-Pin LEMO Power Input) / 14.4V Nominal via Micro V-Mount Battery Plate
- Power Draw (Monitor Only — Wireless RX Disabled): ~20W to 24W
- Power Draw (Active 1500-Nit + Integrated Bolt 6 RX): ~29W Typical / 37W Maximum (At 100% 1500-nit daylight brightness with the internal Teradek Bolt 6 6GHz wireless receiver actively decoding 4K/HD video)
- On-Board Battery Standard: Integrated 14.4V Micro V-Mount battery plate (Note: Due to its high-wattage industrial architecture and integrated wireless receiver, this unit runs on 14.4V V-Mount batteries rather than 7.4V NP-F packs)
- External Supply Options: Locking 2-pin LEMO DC input (10V–34V) via D-Tap cable from a camera rig or block battery
⏱️ Estimated Operating Runtimes (29W Typical / 37W Max @ 85% Efficiency)
- 🔋 V-Mount 98Wh (14.4V): ~2.9 hours (2h 52m @ 29W) / ~2.3 hours (2h 15m @ 37W Max)
- 🔋 V-Mount 150Wh (14.4V): ~4.4 hours (4h 24m @ 29W) / ~3.4 hours (3h 27m @ 37W Max)
- 🔋 V-Mount 190Wh (14.4V): ~5.6 hours (5h 34m @ 29W) / ~4.4 hours (4h 22m @ 37W Max)
- 🔋 V-Mount 290Wh (Stand / Cart Mount): ~8.5 hours (8h 30m @ 29W) / ~6.7 hours (6h 40m @ 37W Max)
📊 Engineering Note: The 85% Efficiency Standard
- Usable Energy Derating: Published calculations apply a standard 0.85 multiplier (Usable Wh = Rated Wh × 0.85). High-bright wireless monitors enforce an automated low-voltage threshold (~11.0V–11.5V) to prevent sudden RF link dropouts, while the remaining variance accounts for thermal dissipation in the 1500-nit backlight driver and 6GHz wireless receiver.
⚠️ Production Advisory: Utilizing the Ultra 7’s auxiliary 2-pin LEMO power outputs to power external accessories (such as a Teradek RT controller or focus hand unit) will add directly to the 29W–37W base draw.
🛠️ Full Rig Planning: Powering your Ultra 7 from a shared camera battery or director’s rig? Access the interactive FRENEL Power & Battery Runtime Calculator to model cumulative amperage draw across your complete setup.
Included
Ultra 7 Bolt 6 RX is available to rent at FRENEL rental.
