Description
Powerful performance built on advanced technology
Whatever the story, the EOS R5 Mark II speaks your language. Shoot with breakneck speed and incredible resolution, and capture next-level video. All this from an agile camera body that inspires creativity from the moment you hold it.
45 megapixel back-illuminated stacked sensor
High-resolution photos and superb 8K 60p RAW video. This ultrafast, stacked sensor design minimises distortion in moving objects and allows blackout-free continuous shooting.
Dual Pixel Intelligent AF
Track people, animals and objects even when they are momentarily hidden from view. Action Priority mode determines the subject in certain sports and moves the AF area accordingly.
Advanced 45 megapixel stacked image sensor
A next-generation full-frame back-illuminated stacked CMOS sensor combines stunning resolution and dynamic range with incredible speed and video capabilities.
8K 60p RAW video
Take your filmmaking projects to new heights with Light RAW, for 12-bit 8K 60p capture using the full width of the camera’s sensor.
Eye-control AF
New for the EOS R5 Mark II, Eye-control AF is now more precise and reliable. It can accurately determine where you are looking and move the active AF point accordingly. Work intuitively, and keep your attention firmly on the subject.
High ISO sensitivity transforms low-light work
A max ISO 51,200 sensitivity (extendable to 102,400) is supported by in-camera neural network noise reduction, for cleaner, more-detailed jpeg images.
Customisable continuous shooting up to 30fps
Adjust the EOS R5 Mark II’s continuous shooting speed in fine increments, capturing 45-megapixel images up to 30 times every second – a combination of speed and resolution that reveals the subtleties of movement in quickly changing scenes.
Fast and accurate
Freeze moments in time with a top electronic shutter speed of 1/32,000 sec, and capture 4K video at up to 120p, including sound. The EOS R5 Mark II’s fast sensor read-out minimises rolling-shutter distortion .
Connected
Get your photos and video back to your client more quickly and reliably than ever, whether you’re connected wirelessly with Wi-Fi 6E (region dependent) or tethered via USB. Choose an optional battery grip to connect via 2.5G BASE-T Ethernet.
Unlock the power of the EOS R System for your business
Find out how Canon mirrorless cameras can unlock new commercial opportunities for your business.
Our smartest autofocus yet
EOS R5 Mark II’s Dual Pixel Intelligent AF sets new standards. Sharp focus is maintained on moving subjects, even when briefly obscured from view. Action Priority mode detects players in football, basketball, volleyball and American football (with Firmware v. 1.3.0 or later), moving the active AF point in response to specific actions – such as a shot on goal made from a high-speed pass.
In-camera 8K RAW up to 60p
Use the full width of the EOS R5 Mark II’s sensor to shoot sensational 8K footage – rich in detail and crop-friendly during editing. 8K 60p Light RAW portrays moving subjects with silky smooth motion. 12-bit colour depth offers fine gradation and wide dynamic range.
Choose between 8K RAW footage, for the ultimate in post-production flexibility, or MP4 formats that fit perfectly with your workflow. You’ll also find the same XF-HEVC S/XF-AVC S formats that are used on our pro video cameras, and Clog2 and Clog3 for effective colour grading.
Versatility in video
Whatever your editing workflow, the EOS R5 Mark II fits in perfectly, able to shoot a variety of resolutions, frame rates and codecs.
- Multiple resolutions up to 8K
- Versatile frame rates from 24p to 240p, depending on resolution and video formats
- Choose between UHD and DCI aspect ratios and different compression formats
Shoot for longer
Shoot 8K 30p video for up to four times longer, thanks to the cooling function build in to the optional Cooling Fan CF-R20EP grip.
Smooth and steady
The EOS R5 Mark II’s refined 8.5-stop in-body Image Stabilizer effectively smooths out any unintentional camera movement when working handheld. Create footage so smooth you’d think it was shot using a gimbal or dolly.
Capturing imperceptible moments in time
Shoot 45-megapixel stills at a staggering 30 frames per second, freezing movement with a top electronic shutter speed of 1/32,000 sec.
Grab more than just a frame
Designed for professional hybrid shooters covering events . With the EOS R5 Mark II’s Dual Shooting function switched on, a press of the shutter-release button while shooting Full HD video captures 7680×4320 (8K) JPG photos at up to 7.5fps using the same shutter speed – all without interrupting video capture.
Whatever the weather
The EOS R5 Mark II is built to the exacting standards that serious image makers have come to love. Moisture and dust-resistant seals protect the camera in harsh environments. A magnesium alloy chassis is tough enough for professional use.
Part of the EOS R System
Invest in a EOS R5 Mark II and you’re getting more than a digital camera. You’re acquiring an ever-growing, state-of-the-art imaging system that’s designed for uncompromising performance and jaw-dropping image quality.
Authenticity Imaging System
Authenticity begins at capture. Canon secures every frame with trusted C2PA provenance manifest for a workflow built on confidence.
Technical Specifications
Specifications in detail
Image Sensor
Type
36 x 24 mm Full Frame back-illuminated stacked CMOS sensor
Effective Pixels
Approx. 45 megapixels
Total Pixels
Approx. 50.3 megapixels
Aspect Ratio
3:2
Low-Pass Filter
Built-in/Fixed
Sensor Cleaning
EOS integrated cleaning system
Colour Filter Type
RGB Primary Colour
Sensor Shift-IS
Yes, up to 8.5-Stops advantage at the center and 7.5-stops peripheral depending on the lens used1
Image Processor
Type
DIGIC Accelerator and DIGIC X
Lens
Lens Mount
RF / RF-S
EF and EF-S lenses can be attached using: Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R, Drop-In Filter Mount Adapter EF-EOS R
EF-M lenses are not compatible
Focal Length
Equivalent to 1.0x the focal length of the lens with RF and EF lenses, 1.6x with EF-S and RF-S lenses.
Focusing
Type
Dual Pixel Intelligent AF
AF Positions
100% horizontal and 100% vertical with Face + Tracking and Auto Selection modes
100% horizontal and 90% vertical with manual selection and large zone modes2
AF Working Range
EV -6.5 – 21 (at 23°C & ISO100)3
AF Modes
One Shot, Servo AF, AI Focus AF (in A+ Scene Intelligent Auto mode )
AF Point Selection
Automatic selection: Face + tracking. 1053 Available AF areas when automatically selected
Manual selection: Spot AF
Manual selection: 1-point AF (AF frame size can be changed) 5850 (stills)/ (4500) movie AF positions available
Manual selection: AF point Expansion 4 points (up, down, left, right)
Manual selection: AF point Expansion surrounding
Manual selection: Flexible Zone AF 1-3 (all AF points divided into minimum 9 to 999 maximum focusing zones, where the width and hight is also adjustable)
Manual selection: Whole area AF
Manual selection: Spot AF (Whole area tracking servo AF OFF)
Manual selection: 1-point AF (Whole area tracking servo AF OFF)
Manual selection: AF point Expansion 4 points (up, down, left, right) (Whole area tracking servo AF OFF)
Manual selection: AF point Expansion surrounding (Whole area tracking servo AF OFF)
AF Tracking
Humans (Eyes, Face, Head, Upper half of body, Body), Animals (Dogs, Cats, Birds and Horses) or Vehicles (Racing cars or Motor bikes, Airplanes and Trains), Register People Priority (up to 10 x 10 registered people), Action Priority4 (Football, Basketball, Volleyball, American Football(with Firmware v. 1.3.0 or later)) 5
AF Lock
Locked when shutter button is pressed halfway or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
AF Assist Beam
Emitted by built in LED or optional dedicated Speedlite (flash)
Manual Focus
Selected on lens
Exposure Control
Metering Modes
Real-time with image sensor, 6144-zone metering.
(1) Evaluative metering (linked to All AF points)
(2) Partial metering (Approx. 9.5% of screen at centre)
(3) Spot metering: Centre spot metering (Approx. 5.3% screen at centre) AF point-linked spot metering not provided
(4) Centre weighted average metering
Metering Brightness Range
EV -3 – 20 (at 23°C, ISO100, with evaluative metering)
AE Lock
Auto: AE lock takes effect when focus is achieved Manual: By AE lock button in P, Av, Fv, Tv and M modes
Exposure Compensation
+/-3 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
AEB
+/-3 EV in 1/3 or 1/2 stop increments
Anti-flicker Shooting
Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease available with both electronic and mechanical shutter
High Frequency anti flicker shooting for M and TV modes
Electronic 1st-curtain: 1/50.0 to 1/2048.0 sec.
Electronic shutter: 1/50.0 to 1/8192.0 sec.
Movie recording: 1/50.0 to 1/8192.0 sec. (NTSC/PAL)
Maximum continuous shooting speed may decrease.
ISO SensitivityOpen
Auto 100-51200 (in 1/3-stop or 1 stop increments)
ISO can be expanded to L:50, H1:1024006
Shutter
Type
Electronically-controlled focal-plane shutter and Electronic shutter function on sensor
Speed
Mechanical / Electronic 1st-curtain: 30-1/8000 sec (1/2 or 1/3 stop increments), Bulb
Electronic: 30-1/32000 (1/2 or 1/3 stop increments up to 1/16000 then 1 stop until 1/32000), Bulb
(Total shutter speed range. Available range varies by shooting mode)
Shutter Release
Soft touch electromagnetic release
White Balance
Type
Auto white balance with the imaging sensor supported by deep learning technology
AWB (Ambience priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
Settings
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/Green +/-9
Custom White Balance
Yes, 5 setting can be registered, 4 colour temperature values assignable to a custom button(Firmware v. 1.3.0)
WB Bracketing
+/-3 levels in single level increments 3, 2, 5 or 7 bracketed images per shutter release
Selectable Blue/Amber bias or Magenta/Green bias
Viewfinder
Type
0.5-inch OLED colour EVF
Dot Count
5.76 Million dots (1600×1200)
Coverage (Vertical/Horizontal)
Approx. 100%
Magnification
Approx. 0.76×7
Eyepoint
Approx. 24mm (from eyepiece lens centre)
Dioptre Correction
-4 to +2 m-1 (dioptre)
Display Performance
Power saving: 59.94 fps Smooth 119.98 fps , supress low frame rate 60 -119.8fps8 (7 level of brightness)
Viewfinder Information
AF point information, Eye Control pointer, Exposure level indicator, Shooting mode, ISO speed, Shutter speed, Aperture, Number of remaining multiple exposures, Exposure compensation, HDR shooting, Highlight tone priority, Multiple-exposure shooting, Multi Shot Noise Reduction, Number of self-timer shooting, Digital Lens Optimizer, Maximum burst, AF method, Battery level, Electronic level size, Card free space (%) display, AF operation, Exposure simulation, Drive mode, AEB, Metering mode, FEB, Anti-flicker shooting, Still photo cropping, Aspect ratio, Auto Lighting Optimizer, AE lock, Picture Style, Flash-ready, White balance, Flash off, White balance correction, FE lock, Image Quality, High-speed sync, Bluetooth function, Wi-Fi function, Multi-function lock warning, Histogram, Electronic level, Lens information, focus distance scale, vertical exposure scale, Grid,
Depth of Field Preview
Yes, via customised button
LCD Monitor
Type
8.0cm (3.2″) TFT Colour LCD, approx. 2.1million dots
Coverage
Approx. 100%
Viewing Angle (Horizontally/Vertically)
Approx. 170° vertically and horizontally
Coating
Anti-smudge coating provided.
Brightness Adjustment
Manual: Adjustable to one of seven levels Colour Tone Adjustment: 4 settings
Touch Screen Operations
Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in still and Movies, touch shutter is possible in still photo shooting.
Display Options
(1) Basic Camera settings
(2) Advance Camera settings
(3) Camera settings plus histogram and dual level display
(4) No info
(5) Quick Control Screen
(6) Off
Flash
Modes
E-TTL II flash metering, Manual flash, MULTI flash (stroboscopic), Auto external flash metering, Manual external flash metering
X-Sync
When [Cropping/aspect ratio: Full-frame/1:1/4:3/16:9] is set: 1/200 sec mechanical shutter / 1/250 electronic 1st curtain, 1/160 sec Electronic shutter
When [Cropping/aspect ratio: 1.6x (crop)] is set: 1/250 sec mechanical shutter / 1/320 electronic 1st curtain, 1/250 sec Electronic shutter9
Flash Exposure Compensation
‘+/- 3EV in 1/3 increments with EX and EL series Speedlite flashes
Flash Exposure Bracketing
‘+/- 3EV in 1/3 increments with EX and EL series Speedlite flashes
Flash Exposure Lock
Yes
Second Curtain Synchronisation
Yes via Speedlite
Multi-Function Shoe / HotShoe / PC Terminal
Yes/Yes and Multi-function shoe
External Flash Compatibility
EL series Speedlites, EX series Speedlites, Macrolites, Wireless multi-flash support
External Flash Control
via camera menu screen
Shooting
Modes
Stills: Scene Intelligent Auto, Flexible priority AE, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
Movie: Scene Intelligent Auto, Program AE, Shutter priority AE, Aperture priority AE, Manual, Bulb and Custom (x3)
Picture Styles
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space
SDR: sRGB and Adobe RGB HDR PQ: BT.2020
Highlight Tone Priority (3 settings)
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction (3 settings) (still only)
Clarity
High ISO speed noise reduction (4 settings) (still and video)
Lens optical correction:
– Peripheral illumination correction, Chromatic aberration correction Distortion correction (during/after still photo shooting, during video only)
– Focus breathing correction(during video only)
– Diffraction correction,
– Digital Lens Optimizer (during/after still photo shooting)
Image Processing
Resize to M, S1, S2
Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
Cropping of images
– Switch between vertical and horizontal cropping orientation
– Image straightening
– Cropping frame can be moved using touch screen operation
– Neural Network Upscaling
RAW image processing
Neural Network Noise Reduction
Multiple exposure
HDR
HEIF to Jpeg conversion (inc Batch conversion)
Focus Bracketing and in camera composition
Drive Modes
Single, Continuous High+, Continuous High, Continuous Low, Customisable Continuous shooting speeds, Self-timer (2s+remote, 10s+remote, continuous)
Continuous Shooting
Max. Approx. 12 fps. with Mechanical shutter/1st curtain electronic speed maintained for 760 JPEG or 230/95(CFexpress/SD card) RAW images or 30 FPS with electronic shutter speed maintained for 200 JPEG or 93/86(CFexpress/SD card) RAW images10.
Custom Continuous shooting speed with Electronic shutter selectable options 30 / 20 / 15 / 12 / 10 / 7.5 / 5 / 3 / 2 / 1 FPS depending on the drive mode.
Pre-Continuous shooting is possible from 15 shots before the shutter button is fully pressed when the AF is on for 15 shots or more.
Pre-Continous shooting ON/OFF via customised button.(Firmware v. 1.3.0 or later)
Interval Timer
Built in
File Type
Still Image Type
RAW 14 bit: RAW and C-RAW (Canon original RAW 3rd edition)
Dual Pixel RAW (Firmware v. 1.3.0 or later)
JPEG 8 bit: 10 compression options
HEIF 10 bit: 10 compression options
Complies with Exif 2.31 and Design rule for Camera File system 2.0
Complies with Digital Print Order Format [DPOF] Version 1.1
RAW+JPEG Simultaneous Recording
Yes, any combination of RAW + JPEG or RAW + HEIF possible,
Image Size
RAW/ C-RAW:
3:2 ratio 8192×5464, 1.6x (crop) 5088×3392
JPEG/ HEIF:
3:2 ratio (L, RAW, C-RAW) 8192×5464, (M) 6000×4000, (S1) 4176×2784, (S2) 2400×1600
1.6x (crop) (L) 5088×3392, (S2) 2400×1600
4:3 ratio (L) 7280×5464, (M) 5328×4000, (S1) 3712×2784, (S2) 2112×1600
16:9 ratio (L) 8192×4608, (M) 6000×3368, (S1) 4176×2344, (S2) 2400×1344
1:1 ratio (L) 5456×5456, (M) 4000×4000, (S1) 2784×2784, (S2) 1600×1600
In-camera Neural Network Upscaling up to 16384×10928 (179MP)11
Folders
New folders can be manually created, named and selected
Movie folder structure is adopting the XF-HEVC S / XF-AVC S format
File Numbering
(1) Consecutive numbering
(2) Auto-reset
(3) Manual reset
File Naming
Still:
Preset code Unique 4-digit character string + 4-digit file number
2 User Presets
Movie:
Adopting the XF-HEVC S / XF-AVC S format
Camera index, Reel number, Clip number, Codec type, Shooting start date, Shooting start time, Random ID, User defined 5 characters, Stream number, (Proxy)
EOS Movie
Movie Type
RAW/SRAW Video: 8K DCI(17:9) / 4K DCI(17:9)12
MP4 Video: 8K DCI/UHD (17:9/16:9) 4K DCI/UHD (17:9/16:9), 2K/Full HD (17:9/16:9)
8K/4K/2K/Full HD: XF-HEVC S/H.265, Audio: Linear PCM / AAC
4K/2K/Full HD: MPEG-4 AVC S/H.264, Audio: Linear PCM / AAC
8K RAW 4K RAW: 12bit CRM Audio: Linear PCM / AAC
8K/4K/FullHD Time-lapse movie mode
Movie Size
RAW (Light) (17:9) 8192 x 4320 (59.94, 50, 29.97, 25, 24, 23.98 fps)
RAW (Standard) (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps)
SRAW (Standard, Light) (17:9) 4096 x 2160 (59.94, 50, 29.97, 25, 24, 23.98 fps)
8K DCI (17:9) 8192 x 4320 (29.97, 25, 24, 23.98 fps) 2-3 type of intra or Long GOP
8K UHD (16:9) 7680 x 4320 (29.97, 25, 23.98 fps) 2-3 type of intra or Long GOP13
4K DCI (17:9) 4096 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) 3 type of intra or Long GOP
4K UHD (16:9) 3840 x 2160 (119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) 3 type of intra or Long GOP
2K DCI (17:9) 2048 x 1080 (239.76, 200, 119.9, 100, 59.94, 50, 29.97, 25, 24, 23.98 fps) Intra frame or Long GOP
Full HD (16:9) 1920 x 1080 (239.76, 200, 119.9, 100, 59.94, 50, 29.97, 25, 23.98 fps) Intra frame or Long GOP
HDR movie recording at up to 59.94p in Normal modes of 4K DCI/UHD, 2K DCI/UHD, Full HD
HDR movie recording at up to 29.97p in Fine modes of 4K DCI/UHD, 2K DCI/UHD, Full HD14
Colour Sampling (Internal Recording)
8K/ 4K/ 2K/ Full HD – YCbCr4:2:0 or YCbCr4:2:2 8-bit or 10bit
Canon Log
Custom Picture:
C1: Canon 709
C2: Canon Log 2
C3: Canon Log 3
C4: PQ
C5: HLG
C6: BT.709 Standard
C7 – C20: User Defined
Picture Styles: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Movie Length
Max duration 6 hours. (excluding High Frame Rate movies). No 4 GB file limit with exFAT formatted card.15
High Frame Rate Movie
MP4 Video:
4K – DCI 4096×2160 / UHD 3840×2160 at 119.9 / 100 fps
2K – DCI 2048×1080 / UHD 1920×1080 at 239.76 / 200 / 119.9 / 100 fps
Full HD 1920 x1080 at 239.76 / 200 / 119.9 / 100 fps16
Frame Grab
35.4-megapixel JPEG still image frame grab from 8K DCI movie possible
33.2-megapixel JPEG still image frame grab from 8K UHD movie possible
8.8-megapixel JPEG still image frame grab from 4K DCI movie possible
8.3-megapixel JPEG still image frame grab from 4K UHD movie possible
(HEIF only possible when HDR PQ is set)17
Dual Shooting (Still & Movie):
Movie Output:
Main recording format: XF-AVC S YCC420 8bit
Movie recording size: Full HD (Normal) at 29.97p / 25p (LGOP)
Still Drive mode (JPEG only at the resolution of 8K(7680×4320) and Aspect ratio: Approx. 16:9):
High speed (Max. approx. 7.5 shots/sec. (NTSC), Max. approx. 6.2 shots/sec. (PAL))
Low speed (Max. approx. 5.0 shots/sec. (NTSC), Max. approx. 4.1 shots/sec. (PAL))
Single shooting18
Bitrate / Mbps
CRM:
8K RAW Standard (29.97p/25.00p/24.00p/23.98p): Approx. 2600 Mbps
8K RAW Light (59.94p/50.00p): Approx. 2600 Mbps
8K RAW Light (29.97p): Approx. 1670 Mbps
8K RAW Light (25p): Approx. 1400 Mbps
8K RAW Light (24.00p/23.98p): Approx. 1340 Mbps
4K SRAW Standard (59.94p): Approx. 1860 Mbps
4K SRAW Standard (50p): Approx. 1550 Mbps
4K SRAW Standard (29.97p): Approx. 930 Mbps
4K SRAW Standard (25.00p/24.00p/23.98p): Approx. 780 Mbps
4K SRAW Light (59.94p): Approx. 840 Mbps
4K SRAW Light (50p): Approx. 700 Mbps
4K SRAW Light (29.97p): Approx. 420 Mbps
4K SRAW Light (25.00p/24.00p/23.98p): Approx. 350 Mbps
MP4 8K DCI/UHD Normal:
XF-HEVC S YCC422 10bit
High Quality Intra 24p / 23.98p: Approx. 1920 Mbps
Standard Intra 25p: Approx. 1500 Mbps
Light Intra 25p: Approx. 1000 Mbps
Standard LGOP 25p: Approx. 540 Mbps
XF-HEVC S YCC420 10bit Standard LGOP
29.97p/25.00p/24.00p/23.98p: Approx. 400 Mbps
MP4 4K DCI/UHD Fine / Normal (Oversampled from 8K / Not oversampled):
XF-HEVC S YCC422 10bit Standard LGOP
29.97p/25.00p/24.00p/23.98p: Approx. 135 Mbps
XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP
29.97p/25.00p/24.00p/23.98p: Approx. 100 Mbps
XF-AVC S YCC422 10bit
High Quality Intra 25p: Approx. 500 Mbps
Standard Intra 25p: Approx. 375 Mbps
Light Intra 25p: Approx. 250 Mbps
Standard LGOP 29.97p/25.00p/24.00p/23.98p: Approx. 150 Mbps
MP4 4K DCI/UHD Normal (Not oversampled):
XF-HEVC S YCC422 10bit Standard LGOP
119.9p / 100p: Approx. 450 Mbps
59.94p/50.00p: Approx. 225 Mbps
XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP
119.9p / 100p: Approx. 300 Mbps
59.94p/50.00p: Approx. 150 Mbps
XF-AVC S YCC422 10bit
High Quality Intra 50p: Approx. 1000 Mbps
Standard Intra 100p: Approx. 1500 Mbps
Standard Intra 50p: Approx. 750 Mbps
Light Intra 100p: Approx. 1000 Mbps
Light Intra 50p: Approx. 500 Mbps
Standard LGOP 100p: Approx. 500 Mbps
Standard LGOP 50p: Approx. 250 Mbps
MP4 2K DCI / FullHD Fine / Normal (Oversampled from 4K / Not oversampled):
XF-HEVC S YCC422 10bit Standard LGOP
59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 50 Mbps
XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP
59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 35 Mbps
XF-AVC S YCC422 10bit
Standard Intra 25p/50p: Approx. 125/250 Mbps
Standard LGOP 59.94p/50.00p/29.97p/25.00p/24.00p/23.98p: Approx. 50 Mbps
MP4 2K DCI/UHD Normal (Not oversampled):
XF-HEVC S YCC422 10bit Standard LGOP
239.76p / 200p: Approx. 200 Mbps
119.88p / 100p: Approx. 100 Mbps
XF-HEVC / XF-AVC S S YCC420 10bit / 8bit Standard LGOP
239.76p / 200p: Approx. 140 Mbps
119.88p / 100p: Approx. 70 Mbps
XF-AVC S YCC422 10bit
Standard Intra 200p: Approx. 1000 Mbps
Standard Intra 100p: Approx. 500 Mbps
Standard LGOP 200p: Approx. 200 Mbps
Standard LGOP 100p: Approx. 100 Mbps
Proxy movie (2K-DCI Normal / Full HD Normal)
XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Standard LGOP
59.94p/50p/29.97p/25p/24p/23.98p: Approx. 16 Mbps
XF-HEVC S YCC420 10bit / XF-AVC S YCC420 8bit Light LGOP
59.94p/50p/29.97p/25p/24p/23.98p: Approx. 9 Mbps
Dual Card Recording
Yes (including Proxy recording)
Microphone
Built-in mono microphone (48 Khz, 24/16-bit x 2 channels)
Audio format:
LPCM / 24 bit / 4CH
AAC / 16 bit / 2CH
HDMI Display
Output to external monitor only (output of images and shooting information, images are recorded to the card)
Camera screen and External Monitor output (Simultaneous recording to camera and external recorder, camera screen shows images with shooting information)19
HDMI Output
8K RAW or 4K SRAW ProRes recording via HDMI20
4K (DCI) 59.94p / 50p/29.97p /25p/24p/ 23.98p,
4K (UHD) 59.94p / 50p/ 29.97p / 25p / 23.98p,
Full HD 59.94p / 60i / 59.94i / 50p / 50i
480p 59.94p
576p 50p
Uncompressed YCbCr 4:2:2, 10-bit, sound output via HDMI is also possible
Focusing
Dual Pixel Intelligent AF with Eye/Face Detection and Tracking AF (people, animals and vehicles) , Movie Servo AF, Manual Focus
ISO
Auto: 100-25600, H: up to 51200 (when custom picture is off)
Manual: 100-25600, H: up to 51200 (when custom picture is off)
Other Features
Network Options
Communication functions:
– Via Wi-Fi: FTP, FTPS, SFTP, EOS Utility, image.canon, Sync time between cameras, Camera Connect, Streaming services, Content Transfer Professional, Linked shooting, Camera Control API, Auto camera acces point mode with selectable 5GHz Wi-Fi handover (Firmware v. 1.3.0 or later).
– Via Bluetooth: Camera Connect, BR-E1
– Via USB: EOS Utility, Camera Connect, Content Transfer Professional, Video calls/streaming (UVC/UAC)
– Via Ethernet: FTP, FTPS, SFTP, EOS Utility, Sync time between cameras, Camera Control API
Simultaneous use of communication functions:
– FTP (wireless LAN) + EOS Utility (wireless LAN)
– FTP (wired LAN) + EOS Utility (wired LAN)
– FTP (wireless LAN) + EOS Utility (USB)
– FTP (wired LAN) + EOS Utility (USB)
Custom Functions
Selectable 1 or 2 FTP transfer thread (Firmware v. 1.3.0 or later)
Metadata Tag
User copyright information (can be set in camera)
Image rating (0-5 stars)
IPTC data (registered with EOS Utility)
IPTC data (via CTP app)
IPTC IIM (via CTP app)
NewsML-G2 (News Metadata) (via CTP app)
Image transfer with caption (Caption registered with EOS Utility)
Blur/Out-of-Focus image detection data21
LCD Panel / Illumination
Yes/Yes
Water/Dust Resistance
Yes 22
Voice Memo
Yes
Intelligent Orientation Sensor
Yes
Playback Zoom
1.5x – 10x in 15 steps / on high resolution image (Upscaled image): 1.5x to 35x (22 levels)
Display Formats
(1) Single image
(2) Single image with information (2 levels)
Basic – Shooting information (shutter speed, aperture, ISO and Image quality)
Detailed – Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information,
Brightness and RGB histogram, Waveform monitor(movie mode only), White balance, Picture Style, Colour space and noise reduction, Lens optical correction, GPS information, IPTC information
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display (1, 10 or 100 images, start of burst sequence Date, Folder, Movies, Stills, Protected images, Rating)
(8) Movie edit
(9) RAW processing
(10) Rating
SlideShow
Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off
Histogram
Brightness: Yes RGB: Yes
Highlight Alert
Yes
Image Erase
Select and erase images / Select range / All images in folder / All images on card / All found images (only during image search), Images transmitted via FTP
Image Erase Protection
Erase protection of Select images / Select range / All images in folder / Unprotect all images in folder / All images on card / Unprotect all images on card / All found images / Unprotect all found images (only during image search)
Self Timer
2 or 10 sec.
Menu Categories
(1) Shooting menu
(2) AF Menu ([Save to card] / [Load from card] to [Register/recall AF‑related settings] with Firmware v. 1.3.0).
(3) Playback menu
(4) Communication Function (Network)
(5) Function settings (Setup menu)
(6) Customize controls
(7) Custom Functions menu
(8) My Menu
Menu Languages
29 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Malay, Indonesia and Japanese
Firmware Update
Update possible by the user using Camera Connect app or EOS Utility (Camera, Lens, External Speedlite, BLE remote control, Lens adapter, Power zoom adapter, multi-function shoe compatible accessories)
Interface
Computer
SuperSpeed Plus USB 3.2 Gen 2 USB Type-C® connector
Wi-Fi
Wireless LAN (IEEE 802.11ax 2×2 MIMO) (6 GHz23 / 5 GHz / 2.4 GHz)24, with Bluetooth 5.3 support

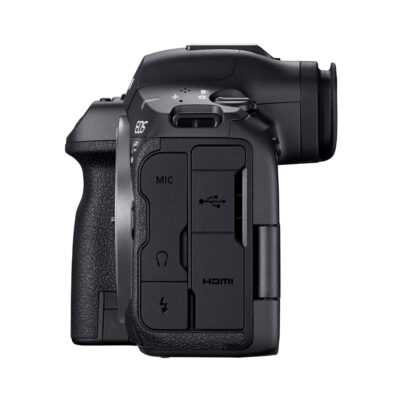

Other
HDMI out (Type A, HDMI-CEC not supported), External Microphone In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal), PC Sync terminal.
Direct Print
PictBridge
Not supported

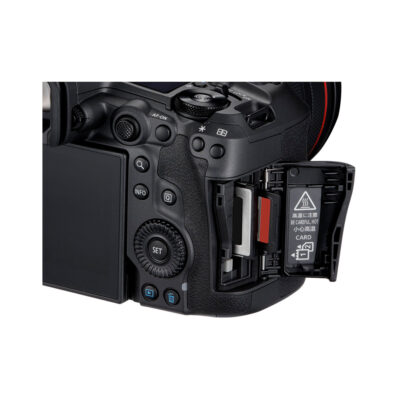

Storage
Type
1x CFexpress type B maximum capacity 8 TB (compatible with CFexpress 2.0 and VPG400)
1x SD/SDHC/SDXC and UHS-II
Supported Operating System
PC
Windows 10 and Windows 11 (tablet mode not supported)
Macintosh
macOS 12 / 13 /14
Software
Image Processing
Digital Photo Professional 4.19.10 or later
Digital Photo Professional Express mobile app 1.10.10 or later (iOS only)
Other
EOS Utility 3.18.10 or later (incl. Remote Capture), Picture Style Editor, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app 3.2.10 or later (iOS/Android), Content Transfer Professional app (iOS/Android), EMR App (Firmware v. 1.2.0 or later)
Power Source
Batteries
Rechargeable Li-ion Battery LP-E6P (supplied)25
Battery Life
With LCD Approx. 630 shots (at 23°C)26
With Viewfinder Approx. 340 shots (at 23°C)27
Battery Indicator
6 levels + percentage
Power Saving
Power turns off after 30 seconds, 1, 3, 5, 10 or 30mins
Power Supply & Battery Chargers
Battery charger LC-E6E (supplied), Car Battery Charger CBC-E6, CD Coupler DR-E6P28, PD-E2 USB power adapter, PD-E1 USB power adapter29
Accessories
Lenses
All RF and RF-S lenses (EF & EF-S via Lens adapters)
Lens Adapters
EF TO EOS R ADAPTER, EF TO EOS R ADAPTER WITH CONTROL RING, EF TO EOS R Drop in filter ADAPTER
Flash
Canon Speedlite (EL-1 (Ver.2)30, EL-131, EL-5, EL-10, EL-100, 90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 470EX-AI, 550EX, 580EX32, 580EX II33, 600EX34, 600EX-RT35, 600EX-II-RT36, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Macro Twin Lite MT-26EX Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT37, Speedlite Transmitter ST-E3-RT (Ver.2) / (Ver.3)38, Speedlite Transmitter ST- E10)
Battery Grip
BG-R20 battery grip39, BG-R20EP battery grip40, CF-R20EP Cooling Fan41 42
Remote Controller / Switch
Remote Switch RS-80N3, Timer Remote Controller TC-80N3, Remote control with N3 type socket, Speedlite 600EX-II-RT. Speedlite EL-1 and BR-E1 Bluetooth remote
Other
GP-E2 GPS receiver43 (digital compass not supported), Eyecup ER-KE, Multi-Function Shoe Adapter AD- E1, Multi-Function Shoe Directional Stereo Microphone DM-E1D (Mic), Multi-Function Shoe Adapter for Smartphone Link AD-P1 for Android, Stereo Microphone DM-E1 / DM-E100, Tascam CA-XLR2d-C XLR microphone adapter, Rain Cover small ERC-R5S, Rain Cover large ERC-R5L, Protecting Cloth PC-E1, Hand Strap E2, Shoe cover ER-SC1, Shoe cover ER-SC2, Shoe cover ER-SC3, Tripod Grip HG-100TBR44, Interface Cable IFC-100U, Interface Cable IFC-400U
Physical Specifications
Body Materials
Magnesium Alloy body and Chassis with some components consisting of polycarbonate with glass fibre
Operating Environment
0 – 40 °C, 85% or less humidity
Dimensions (W x H x D)
Approx. 138.5×101.2×93.5 mm
Weight (Body Only)
Approx. 656 g (746 g with card and battery)
