Description

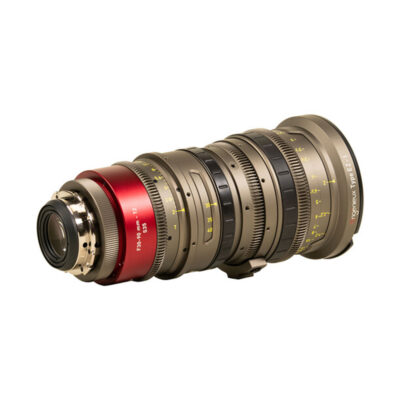

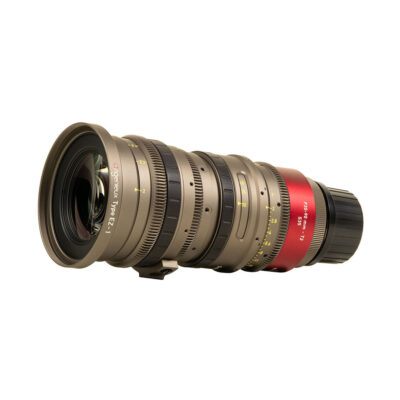

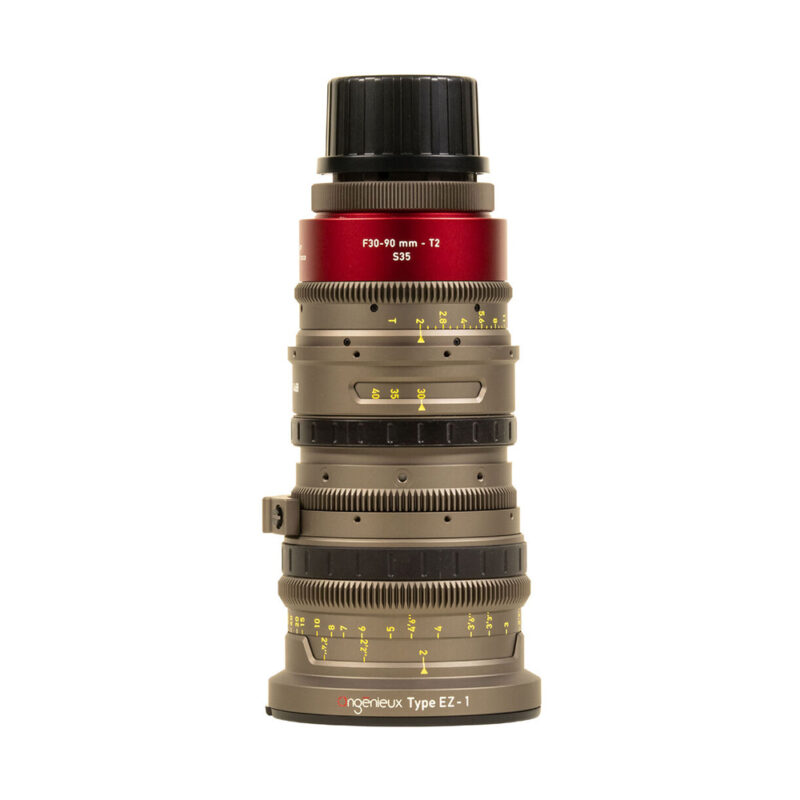

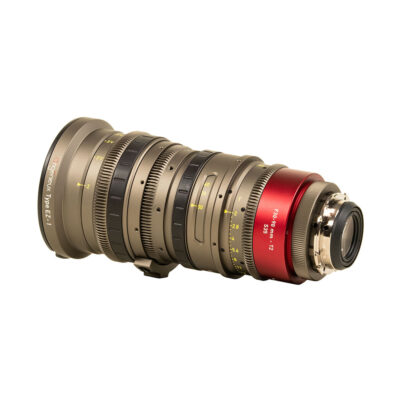

The Angenieux Type EZ-1 is a standard telephoto zoom lens designed for both Super 35mm and Full Frame/VistaVision digital cinematography cameras. By utilizing Angenieux’s innovative Interchangeable Rear Optics (IRO) technology, this single lens offers unparalleled flexibility on set.
When configured for Super 35 cameras, it functions as a 30-90mm zoom with an ultra-fast T2.0 aperture. By swapping the rear element block, the lens transforms into a 45-135mm T3.0 zoom that perfectly covers larger Full Frame and VistaVision sensors with no vignetting. Extremely compact and weighing just 2.15kg, it is ideal for handheld, Steadicam, or gimbal operation. The EZ series perfectly matches the colorimetry and optical characteristics of the legendary Optimo and Optimo Style lines, providing beautiful contrast, minimal breathing, and the coveted Angenieux cinematic rendering.
Technical Specifications
Zoom Ratio: 3x
Focal Length: 30-90mm (S35) / 45-135mm (Full Frame/VV)
Aperture: T2.0 (S35) / T3.0 (Full Frame/VV)
Close Focus: 2ft (0.6m)
Image Circle Coverage: 30mm (S35) / 46mm (Full Frame/VV)
Weight (Approx.): 2.15 kg (4.7 lbs)
Length: 226mm (8.9″)
Front Diameter: 114mm
Lens Mount: PL Mount (Interchangeable to EF/E upon request)
Accessory & Filter Compatibility
Key Measurements
-
⭕ Outer Diameter (O.D.): 114mm (Standard large-format cinema front diameter).
-
🔄 Front Filter Thread: None (This is a true cinema zoom lens; standard screw-on filters cannot be used, and a matte box is strictly required).
-
Physical Movement: Internal focus and internal zoom design. (The front element does not telescope or rotate when pulling focus or zooming, ensuring your matte box and filters remain perfectly stationary).
Compatible Matte Boxes (Available to Rent)
-
Tilta Matte Box MB-T12: Fits perfectly using a 114mm clamp-on adapter ring. Alternatively, it can be mounted securely via 15mm LWS rods.
-
ARRI Lightweight Mattebox LMB-25 3-Stage: Requires a 114mm clamp adapter backplate to fit securely over the front element.
-
Tilta Mirage Motorized VND Kit: While the Mirage is natively 95mm, it can be adapted to this lens only if you use the specific Tilta Mirage 114mm Clamp-on Adapter.
Compatible Filters
-
Cinema Filters (4×5.65″): Because there are no front threads, you must pair this lens with 4×5.65″ glass filters, such as our 7x TIFFEN 4×5.6 IR ND WW Filter Set, using the rod-mounted or clamped MB-T12 or ARRI LMB.
-
Circular Filters: Standard screw-on filters (like 82mm or 86mm) cannot be used on this lens.
Recommended Rigging Accessories
-
Wireless Lens Control (3-Motor Setup): Featuring standard 0.8 MOD gears for Focus, Iris, and Zoom, this lens is designed for full FIZ control. We highly recommend renting a multi-motor setup like the Nucleus-M II Wireless Lens Control System.
-
15mm or 19mm Lens Support: Weighing approximately 2.15 kg (4.7 lbs), this is a heavy cine zoom. Utilizing a robust lens support bracket paired with our Smallrig Adapter Baseplate 15mm is absolutely mandatory to protect the camera’s mount from stress and damage.
⚠️ Rigging Notes for the EZ-1
-
Sensor Coverage (S35 vs FF): The Angénieux EZ-1 features interchangeable rear optics (IRO technology). If it is configured with the Super35 block (30-90mm T2), you cannot shoot full-frame without heavy vignetting. If it is configured with the Full-Frame block (45-135mm T3), it will cover Full-Frame/Vista Vision sensors perfectly. Always confirm which rear block is currently installed before your shoot.
Included
Angenieux EZ-1 30-90mm T2 S35 / 45-135mm T3 FF is available to rent at FRENEL rental.

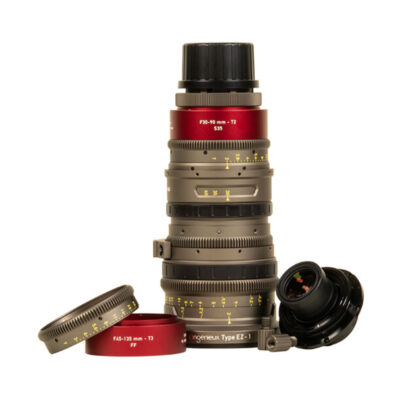

- Angenieux Type EZ-1 Lens (PL Mount)
- Super 35 Rear Optical Block

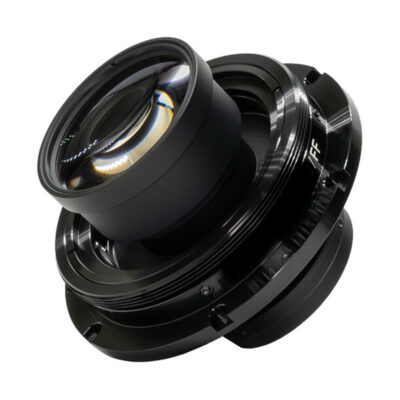

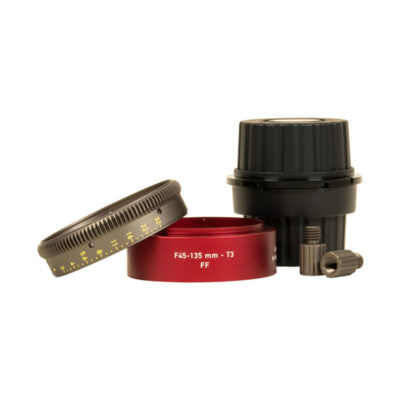

- Full Frame / VistaVision Rear Optical Block
- Front and Rear Lens Caps
- Heavy-Duty Transport Case
(Please specify your required sensor coverage and mount during booking so we can prep it for you).
