Description

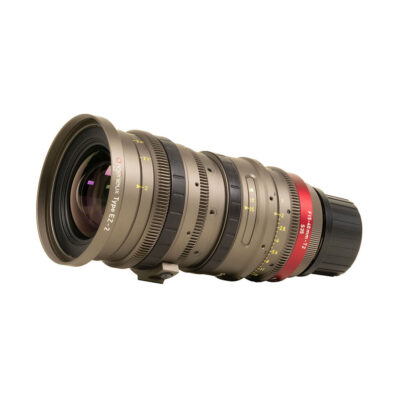

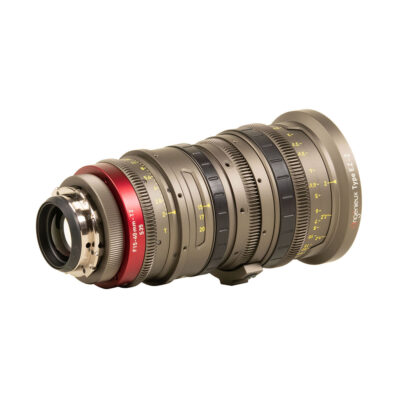

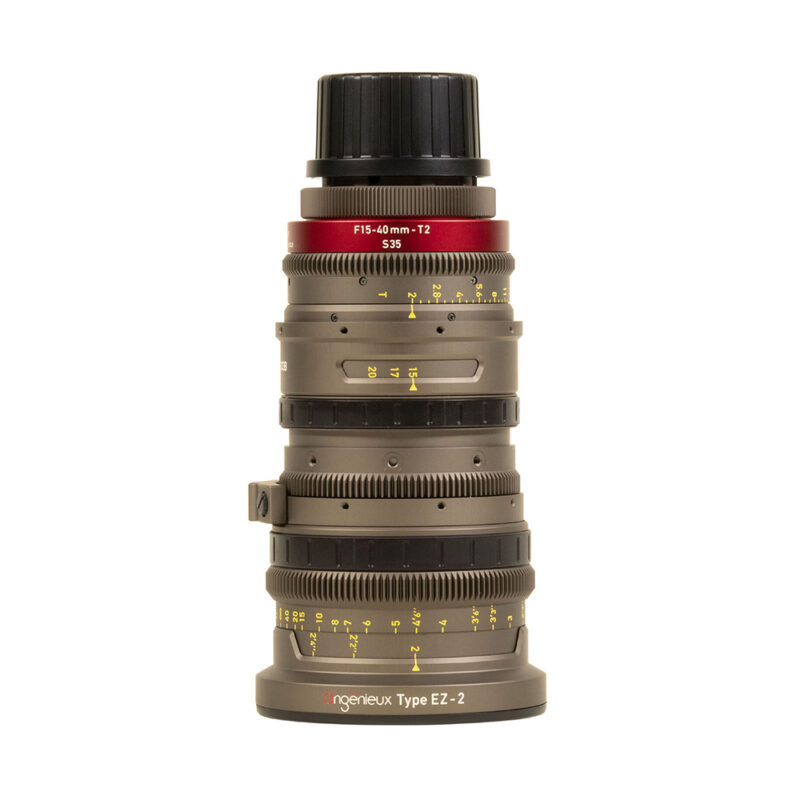

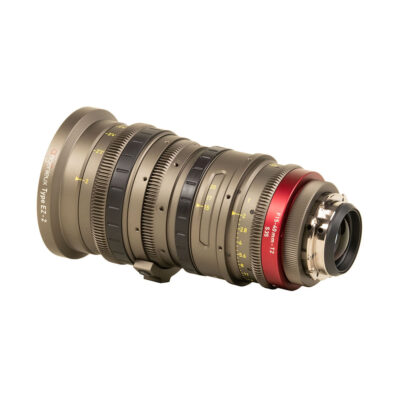

The Angenieux Type EZ-2 is a wide-angle companion to the EZ-1, designed to meet the demands of modern run-and-gun documentary and high-end narrative productions. Thanks to the Interchangeable Rear Optics (IRO) design, the lens is incredibly future-proof.In its Super 35 configuration, the EZ-2 offers a wide 15-40mm focal range with a remarkably fast T2.0 aperture. Swap out the rear element, and it becomes a 22-60mm T3.0 lens fully covering Full Frame and VistaVision sensors. The lens boasts internal focusing and zooming, ensuring the physical size of the lens remains constant—a massive advantage when balancing on a gimbal or utilizing a matte box. With advanced thermal compensation to reduce temperature drift and extremely minimal distortion at the wide end, the EZ-2 delivers premium optical performance in a compact 2.1kg form factor.
Technical Specifications
Zoom Ratio: 2.7x
Focal Length: 15-40mm (S35) / 22-60mm (Full Frame/VV)
Aperture: T2.0 (S35) / T3.0 (Full Frame/VV)
Close Focus: 2ft (0.6m)
Image Circle Coverage: 30mm (S35) / 46mm (Full Frame/VV)
Weight (Approx.): 2.12 kg (4.6 lbs)
Length: 210mm (8.2″)
Front Diameter: 114mm
Lens Mount: PL Mount (Interchangeable to EF/E upon request)
Accessory & Filter Compatibility
Key Measurements
-
⭕ Outer Diameter (O.D.): 114mm (Standard large-format cinema front diameter).
-
🔄 Front Filter Thread: None (This is a true cinema zoom lens; standard screw-on filters cannot be used, and a matte box is strictly required).
-
Physical Movement: Internal focus and internal zoom design. (The front element does not telescope or rotate when pulling focus or zooming, ensuring your matte box and filters remain perfectly stationary).
Compatible Matte Boxes (Available to Rent)
-
Tilta Matte Box MB-T12: Fits perfectly using a 114mm clamp-on adapter ring. Alternatively, it can be mounted securely via 15mm LWS rods.
-
ARRI Lightweight Mattebox LMB-25 3-Stage: Requires a 114mm clamp adapter backplate to fit securely over the front element.
-
Tilta Mirage Motorized VND Kit: While the Mirage is natively 95mm, it can be adapted to this lens only if you use the specific Tilta Mirage 114mm Clamp-on Adapter.
Compatible Filters
-
Cinema Filters (4×5.65″): Because there are no front threads, you must pair this lens with 4×5.65″ glass filters, such as our 7x TIFFEN 4×5.6 IR ND WW Filter Set, using the rod-mounted or clamped MB-T12 or ARRI LMB.
-
Circular Filters: Standard screw-on filters (like 82mm or 86mm) cannot be used directly on this lens.
Recommended Rigging Accessories
-
Wireless Lens Control (3-Motor Setup): Featuring standard 0.8 MOD gears for Focus, Iris, and Zoom, this lens is designed for full FIZ control. We highly recommend renting a multi-motor setup like the Nucleus-M II Wireless Lens Control System.
-
15mm or 19mm Lens Support: Weighing approximately 2.12 kg (4.6 lbs), this is a heavy cine zoom. Utilizing a robust lens support bracket paired with our Smallrig Adapter Baseplate 15mm is absolutely mandatory to protect the camera’s mount from stress and damage.
⚠️ Rigging Notes for the EZ-2
-
Sensor Coverage (S35 vs FF): Just like the EZ-1, the EZ-2 features interchangeable rear optics (IRO technology). If it is configured with the Super35 block (15-40mm T2), you cannot shoot full-frame without heavy vignetting. If it is configured with the Full-Frame block (22-60mm T3), it will cover Full-Frame/Vista Vision sensors perfectly. Always confirm which rear block is currently installed before your shoot.
Included
Angenieux EZ2 15-40mm T2 is available to rent at FRENEL rental.
- Angenieux Type EZ-2 Lens (PL Mount)

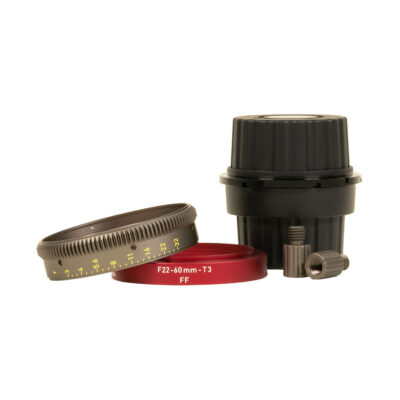

- Super 35 Rear Optical Block

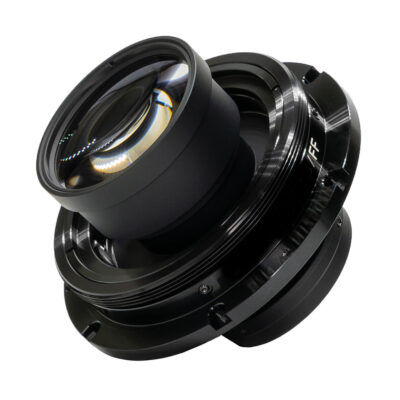

- Full Frame / VistaVision Rear Optical Block
- Front and Rear Lens Caps
- Heavy-Duty Transport Case
(Please specify your required sensor coverage and mount during booking so we can prep it for you).
